供应A7710-000E线性光耦,A7710-000E光电偶合, A7710-000E电路, A7710-000E概率分布函数

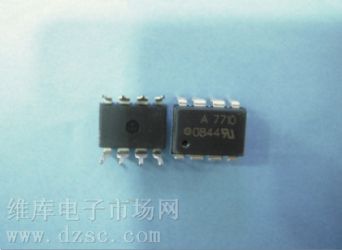

型号：A7710-000E
产家：AVAGO
封装：DIP8
批号：1140+
数量：6000
010-62625640
详细信息返回顶部
- 价格：
电议
HCPL-7710-000E 产品描述
HCPL-7710高速光耦提供8引脚DIP封装风格，采用最新的CMOS IC技术，以实现极低功耗的出色表现。它仅需要两个旁路电容，完整的CMOS兼容性。
HCPL-7710的基本构建块是一个CMOS，高速LED和CMOS探测器IC LED驱动IC。一个CMOS逻辑输入信号控制的LED驱动IC的LED提供电流。探测器IC采用集成的光电二极管，高速转阻放大器，电压比较器和输出驱动。
特点
5 V的CMOS兼容性
8 ns的最大值。脉冲宽度失真
最大为20 ns。提案延迟歪斜
高速：12万桶
40 ns最大值。提案延迟
10千伏/最小共模抑制
-40至100摄氏度温度。范围
安全和法规认证：
1分钟3750 V rms的UL认证。根据UL1577
CSA元件验收通知＃5
符合IEC / EN / DIN EN60747-5-2 - VIORM选项060= 630 V峰值
可用的选项是：
060=符合IEC / EN / DIN EN60747-5-2股权
300 =鸥翼表面贴装选项
500 =带和卷轴包装选项
XXXE=无铅期权
应用
数字现场总线隔离的DeviceNet，SDS，PROFIBUS
交流等离子体显示器的电平转换
复用的数据传输
计算机外围设备接口
微处理器系统接口
